Features

Weighing range up to 3200 g
Display division from 0.5 g
Linear speed up to 100 m/min
Throughput up to 300 ppm
Accuracy from ± 0.5 g
Inquire about "09D3 Checkweigher"
  • This field is for validation purposes and should be left unchanged.
PDF Download

Additional Info

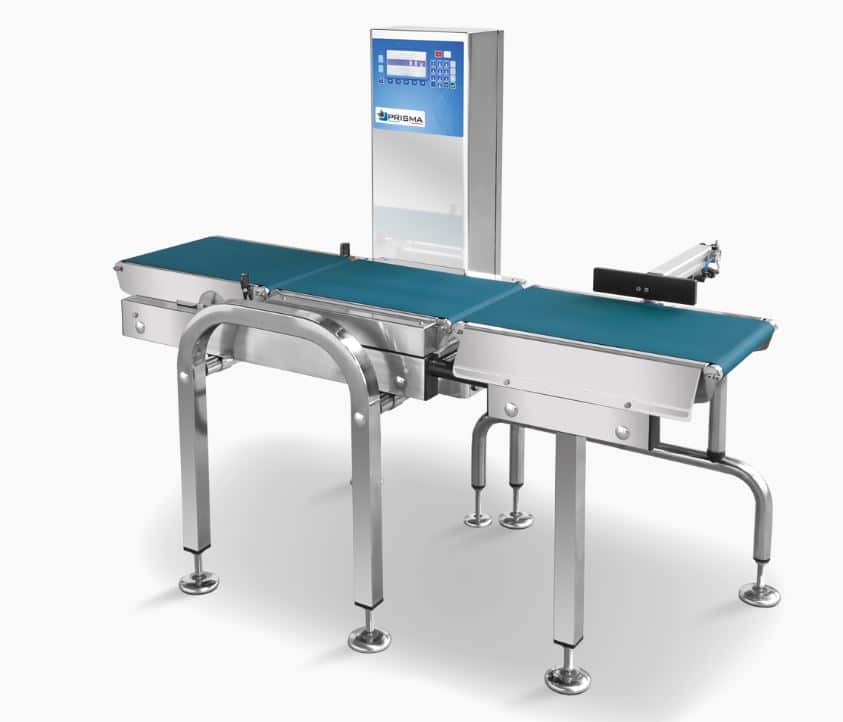

Checkweigher for medium format products.

With a maximum capacity of 10000 g, accuracy from ± 1 g and a production rate of 100 ppm, the 09D3 is a suitable instrument to check bags, cans, boxes of different shapes and sizes.

Made entirely of stainless steel, it has an IP65 degree of protection and high configurability, thanks to the numerous options available. Double load cell weighing system.

Dual System
Weight is measured through a double load cell system. The two cells are positioned to the sides of the weighing plate: this allows the machine to be cleaned more quickly and efficiently than with other configurations, cutting maintenance costs and line standstill times. Furthermore, the Dual System ensures extremely high accuracy and repeatability, even at high speeds.

Advanced, intuitive electronics
Digital electronics with a touchscreen display, complete with self-calibration device, mobile average function and 200 storable programs. There are also 2 RS232 C serial ports available and an Ethernet interface to communicate with the outside. Multi-level password protected access reduces human error to a minimum.

Stable, safe and easily serviced mechanics

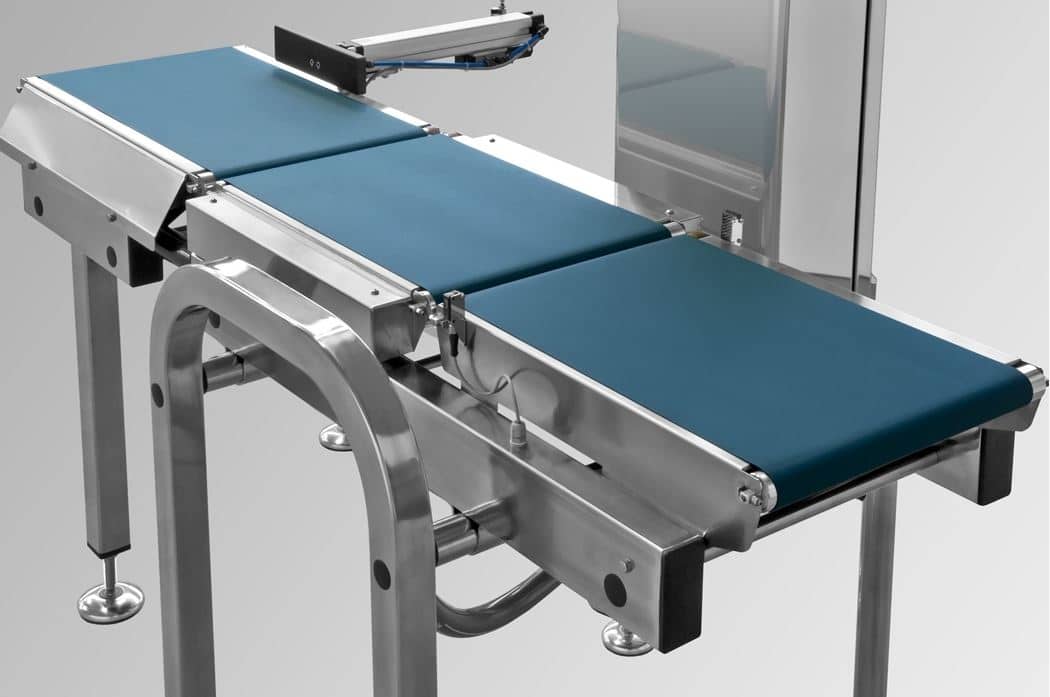

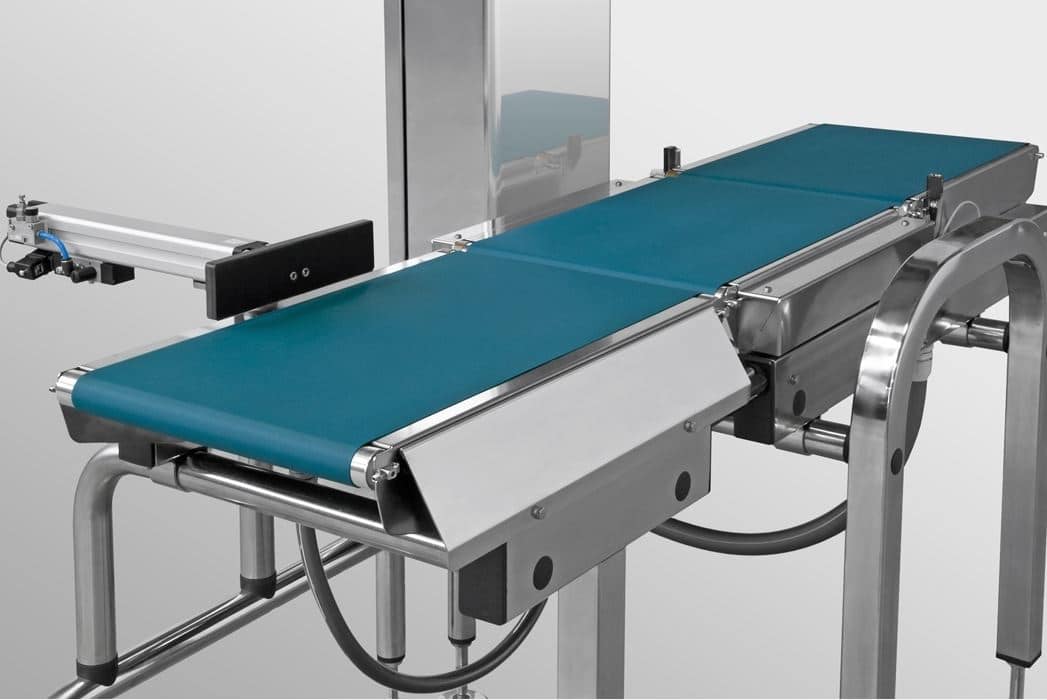

The checkweigher consists of three conveyors (feeder, weighing and outfeed), supported by a structure in stainless steel tubing that gives the machine stability, eliminating possible vibrations and disturbances originating from the workplace. The load-bearing tube structure speeds up cleaning operations.

Experience
30 years of inspection and quality control: an experience that comes to life in every new model that is designed and built in our establishments. The 08T3 boasts over 2000 installations with satisfied customers worldwide.

Quality
Italian passion for quality is reflected in every machine detail. The attention to every detail, guided by thirty years of experience, is the real added value of PRISMA machines. Finished down to the last detail and made entirely of stainless steel, it is able to withstand intense washing cycles, which can be done extremely quickly, thanks to the quick-disassembly plates.

Conformity with standards
The 08T3 meets the ISO-FDA HACCP standard, the main pharmaceutical directives – including, among others: OIML R51 – European Measuring Instruments Directive (MID), FDA approvals, FAT/SAT IQ/OQ, CFR 21 part 11 – and complies with customer guidelines and standards (including, among others: BRC and Marks & Spencer).

Performance and Versatility
Our machines meet high levels of performance and product interchangeability; and wherever they are unable to reach, we can design a tailored system for every requirement.

Return on Investment
Imagine how much you can save with a machine that does not waste product, generate false rejects or force production standstills and that protects the brand. Savings that extend over the years, thanks to the high quality of the materials and the longevity of the machine, which are at top market levels. Our sales team knows how to find the solution that best suits any type of budget and expected financial return.

Convenience and simplicity
A simple, streamlined user interface and years of experience installing and integrating into production lines. All the models can be equipped with Ethernet and USB interfaces to transmit data and all the machines can also be connected to a single, centralised data collection system, our Data Manager Tracking.
