Features

  • The HCPS is robust enough to meet the needs of even the most arduous of environments
  • Built using a heavy duty box section to create a frame that provides a strength by design structure
  • Lower cost of ownership due to longterm lifespan of the product and components fitted
  • Optional pit mounting kit allows the HCPS to be installed into the ground easily
  • Lifetime warranty on the structural integrity of the fabrication. Other components are covered for 5 years
Material Mild Steel
Finish RAL5015 Powder Coat
Capacity 3,000 to 12,000kg
Sizes 1500 x 1500mm to 3000 x 2000mm
Inquire about "HCPM Heavy Duty Scale"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

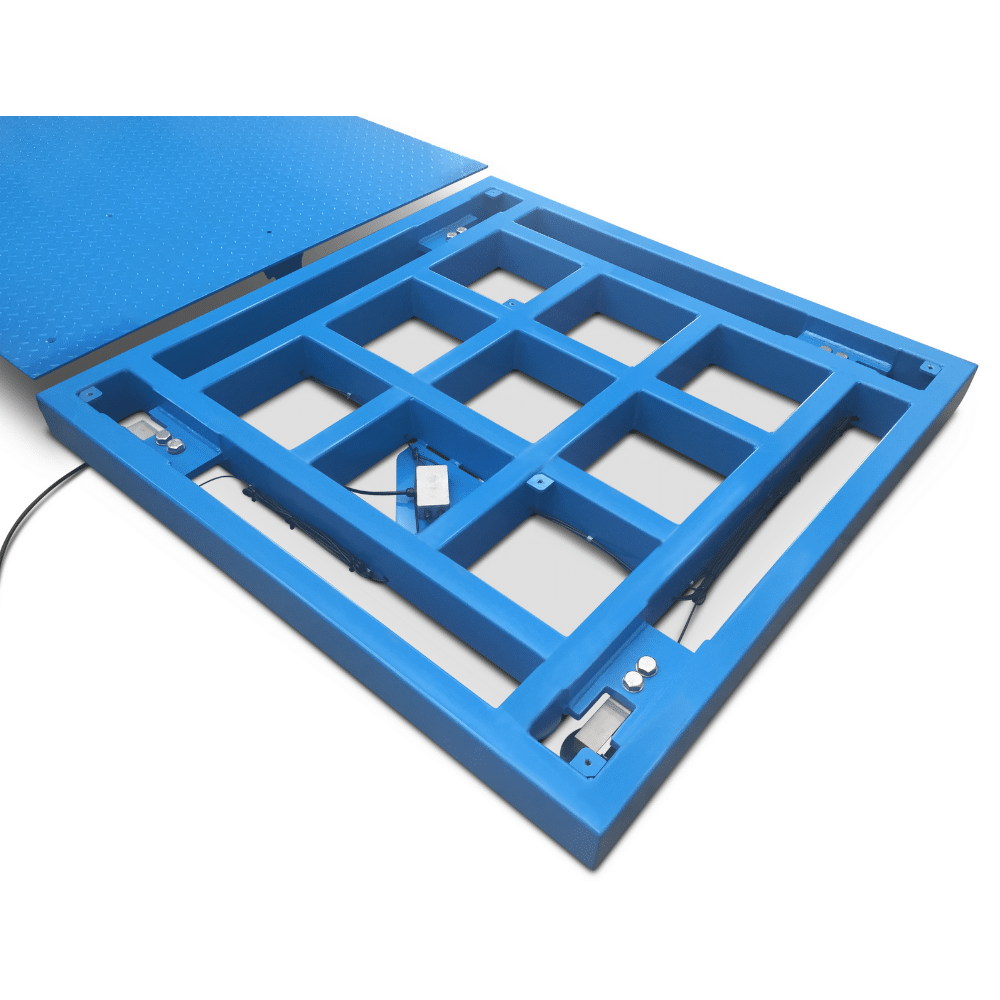

The HCPM range of heavy duty floor scales is designed and manufactured in Leicester by MWS. Its main feature is a high capacity capability. MWS follow simple strength by design principles and has manufactured the HCPM using 120 x 60mm box section and has a 8mm deck plate. Its design enables us to ensure that the unit is strong enough to cope with loads up to 12,000kg yet remain just 160mm high.

Model Size Height Capacity Load Cell
HCPM1515 1500 x 1500 mm 160 mm 3,000 – 12,000 kg Flintec SB5
HCPM2015 2000 x 1500 mm 160mm 3,000 – 12,000 kg Flintec SB5
HCPM2020 2000 x 2000 mm 160 mm 3,000 – 12,000 kg Flintec SB5
HCPM2512 2500 x 500 mm 160 mm 3,000 – 12,000 kg Flintec SB5
HCPM2515 2500 x 1500 mm 160 mm 3,000 – 12,000 kg Flintec SB5
HCPM3015 3000 x 1500 mm 160 mm 3,000 – 12,000 kg Flintec SB5
HCPM3020 3000 x 2000 mm 160 mm 3,000 – 12,000 kg Flintec SB5
